CTIDEA 24 Inch Hot Sell All-In-One Computer/ AIO PC i3 i5 i7 CPU Desktop Computer
Product ID: Y2401
-

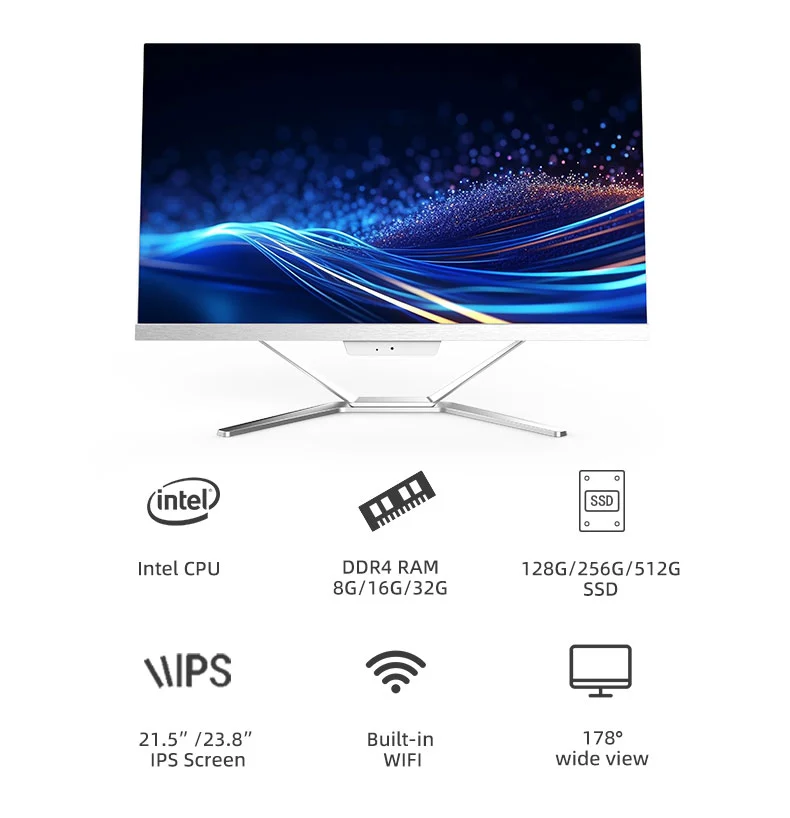

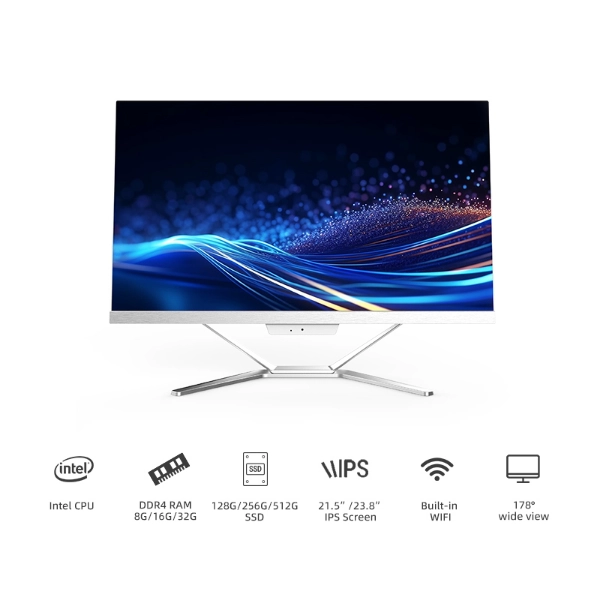

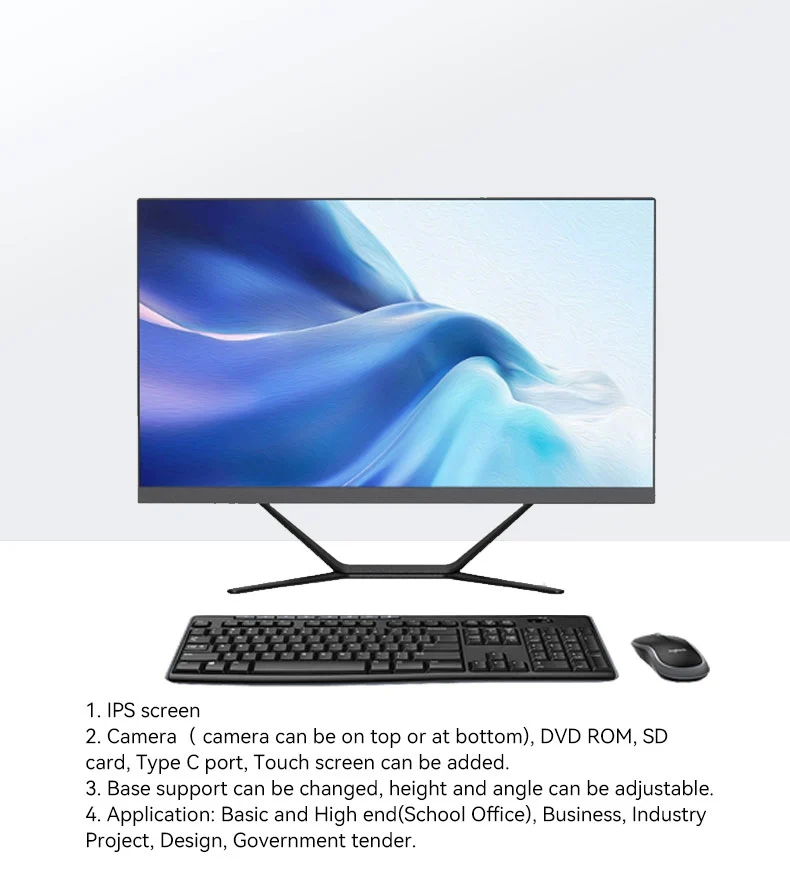

22 inch 24 inch all-in-one PC with HD 1920*1080, IPS screen
-
Intel core CPU, 16GBRAM , SSD and expansion HDD storage, Integrated Intel UHD Graphics 630
-
Gigabit network, dual-band WIFI, high speed interconnection
-
Support expansion SD card slot, type C, optical drive
-

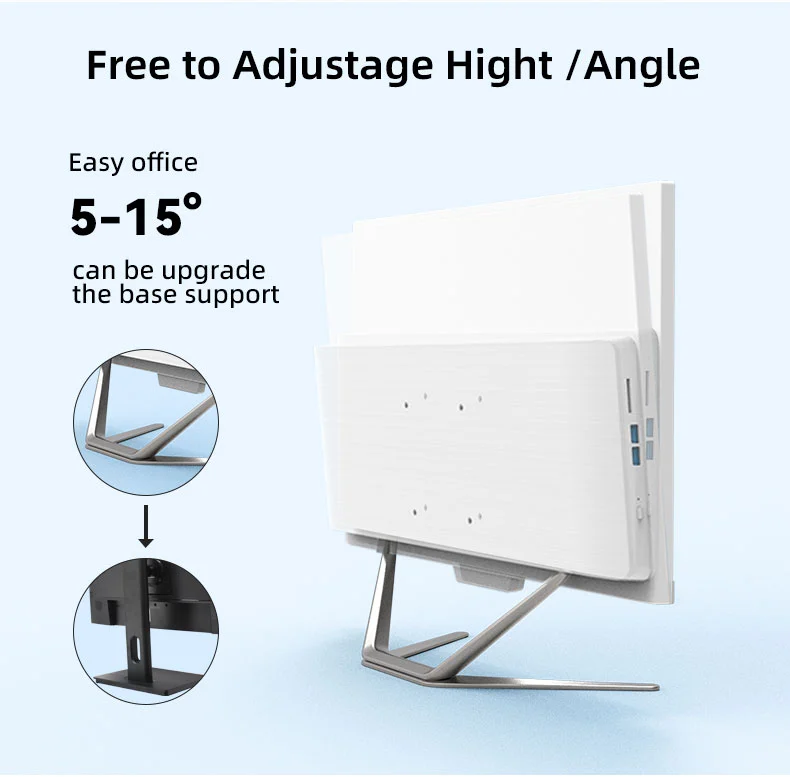

Support height adjustable stand & rotating base, wall mounted (VESA 100*100)
-
Multi-system support: windowns 10, 11 and Linux, Ubuntu
Product Specifications
Technical Details
| Model Number | Y2401 | |
| Panel Information | Screen Size | 23.8 |
| Resolution | 1920*1080 | |
| Brightness | 250cd/㎡ | |
| Viewing Angle | 178/178 | |
| Touch | / | |
| Motherboard Information | Motherboard Type | MINI-ITX |
| Size | 170*170mm | |
| Chip Set | / | |
| CPU Slot Type | LGA 1700 | |
| CPU information | CPU | Intel I5-12450h |
| CPU Type | Laptop | |
| Series | Intel Core Alder Lake | |
| Base | 2.0 GHz | |
| Turbo | 4.4GHz | |
| Cores | 8 cores | |
| Threads | 12 threads | |
| Processor Technology | 7nm | |
| Last Level Cache | 18MB | |
| CPU Power Consumption | TDP-45W | |
| Graphics information | Type | Integrated graphics |
| Chip Model | Intel UHD Graphics for 12th Gen Intel Processors | |
| Capacity | Shared memory capacity | |
| DDR Type | DDR4 | |
| Bit Wide | / | |
| Graphics Card Power Consumption | / | |
| Graphics Card Size | / | |
| Memory information | Capacity | 16GB |
| Type | Laptop type memory | |
| Specification | DDR4 | |
| Frequency | 2666MHz | |
| Working Voltage | 1.2V | |
| Support Memory Slot | Dual memory slot, one slot support max.32GB, two slots max.64GB | |
| SSD information | SSD Capacity & Protocol | 512G SATA |
| HDD Capacity & Type | Optional 1TB/2TB HDD | |
| Network | WIFI | 802.11a/b/g/n/ac |
| Bluetooth | BT4.2 (BT5.2/BT5.3 optional) | |
| Ethernet | RJ45 10/100/1000M | |
| Others | Appearance | Plastic Rear Shell (white or black) + Metal Base (silver, black, white optional) |
| Dissipate Heat | Copper tube + Thermostat Fan | |
| Hard Drive | Support | |
| Button | Power*1 | |
| Interface | Side port: USB2.0*2, SD slot*1, Type C*1 | |

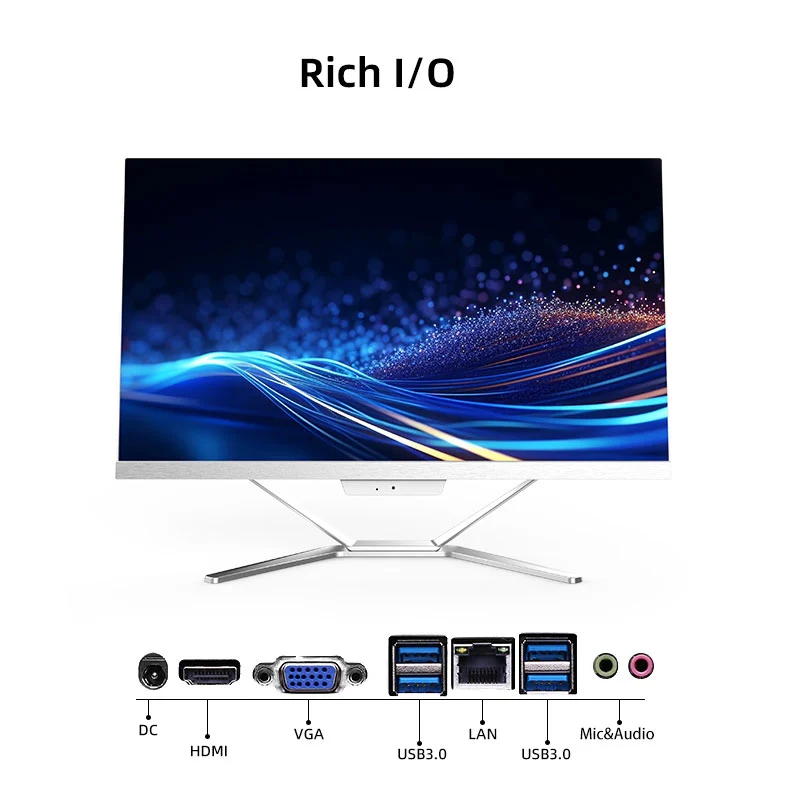

| Bottom port: DC*1, HDMI*1(1.4), VGA*1, USB3.0*4, RJ45*1, MIC*1, Audio*1 | ||
| Accessories | Cable, Adapter, Instructions | |
| Power | Adapter 120W | |
| System | WIN11 pro - without license key | |
| Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -20°C to 60°C Relative Humidity: 20%-80% (Temperature to 40°C) |
|
| Size & packing | Product Size (LxWxH) | 539.8*323.9*43mm |
| Net Weight | About 5.5KG | |
| Package Size (LxWxH) | 595*150*470mm | |
| Gross Weight | About 6.5kg | |
| Loading qty | Without pallets | |
| With pallets (1100MM*1100MM*120MM) | ||
Custom
Customizable AIO PC Solutions

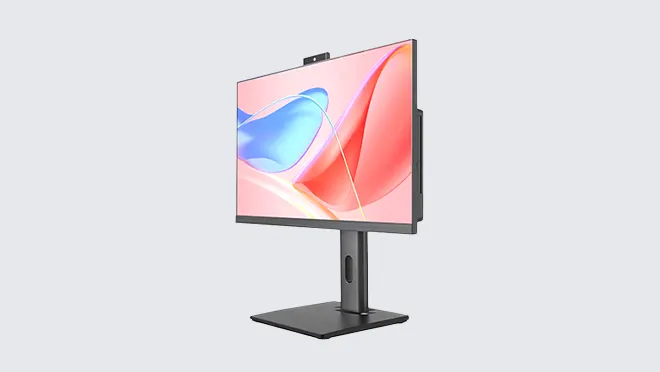

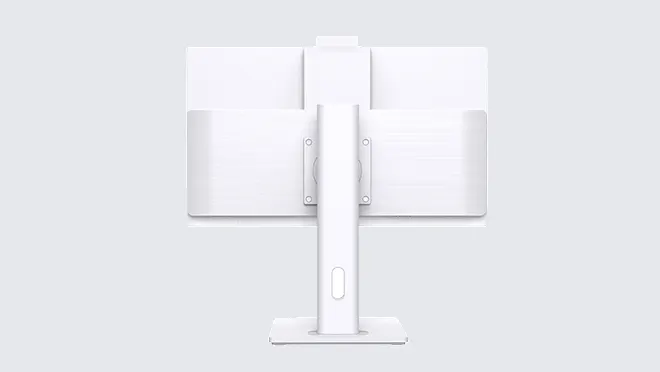

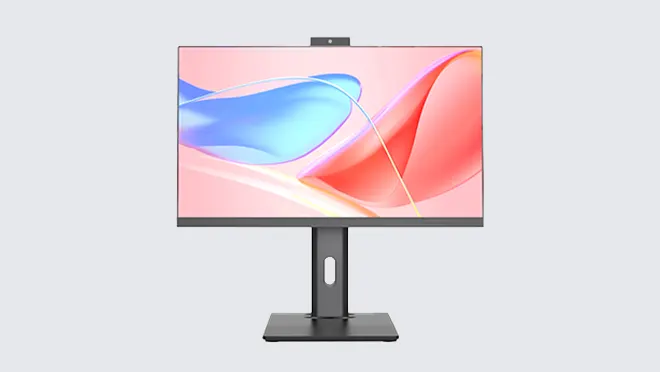

Adjustable AIO Monitors with Hidden Camera
Model Y2201pro/21.5 inch, model Y2401pro/23.8 inch, with height adjustable & rotating base. Support 3MP/5MP Built-in the press hidden type camera, the camera can be installed on top of AIO computer

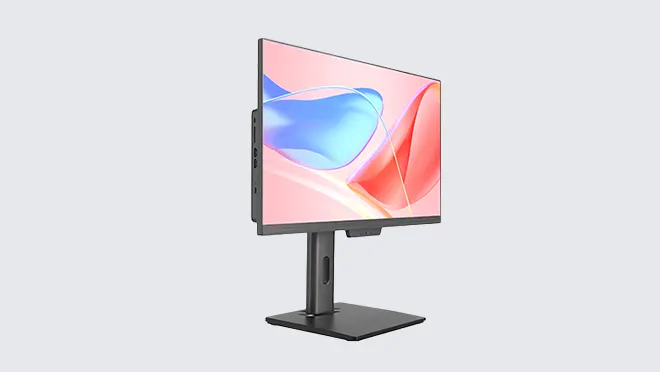

Flexible Camera Positioning AIO Monitors
Depending on different scene requirements, you can also install the camera at the bottom of the computer.

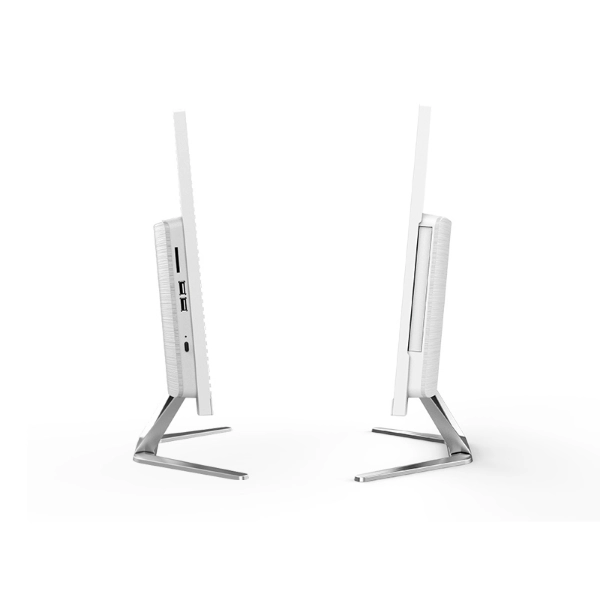

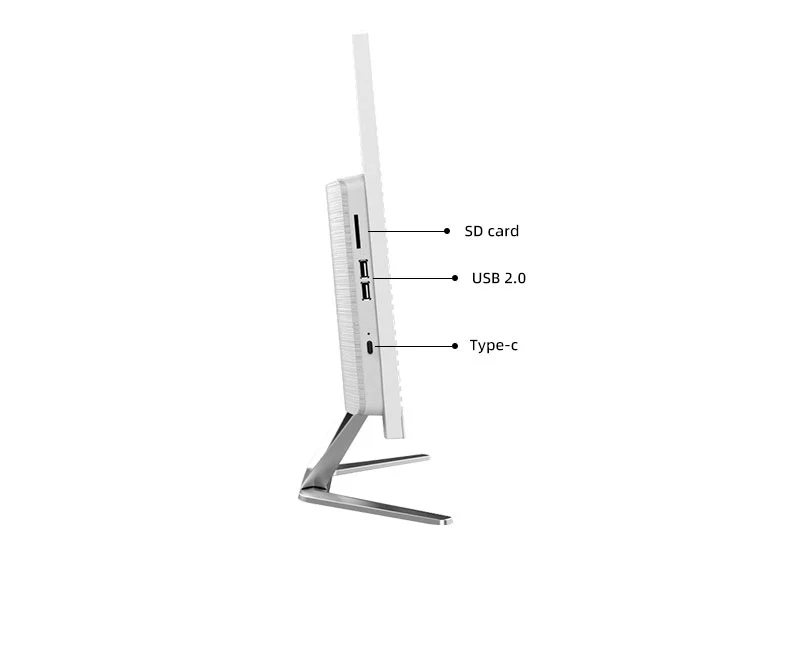

Versatile Connectivity AIO PC
Rich interface on side of AIO PC can meet your different demand to connect with other devices: TYPE C*1, micro SD card*1, USB2.0(USB3.0)*2, optical drive for optional.

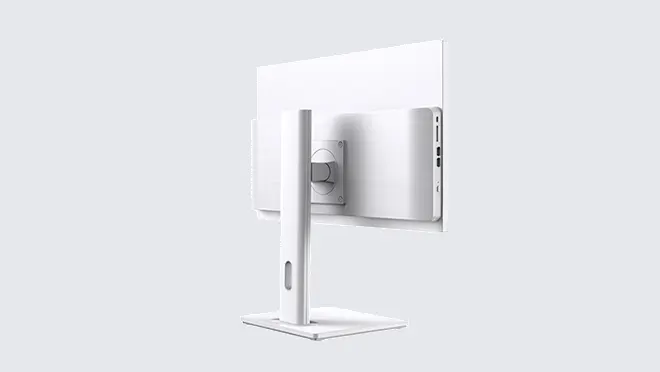

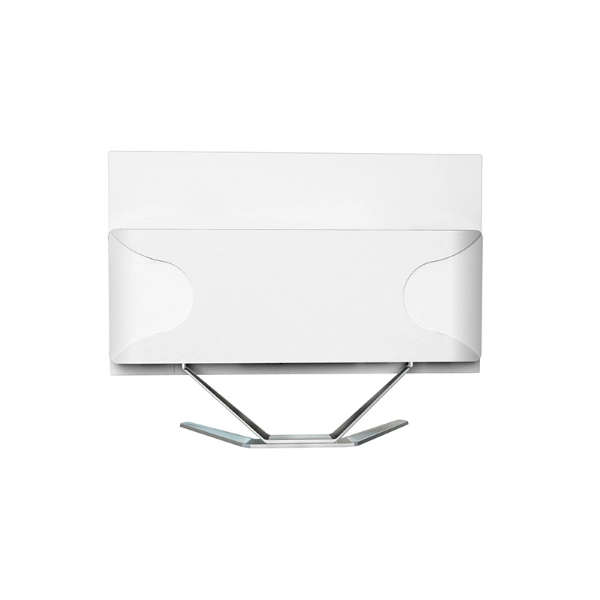

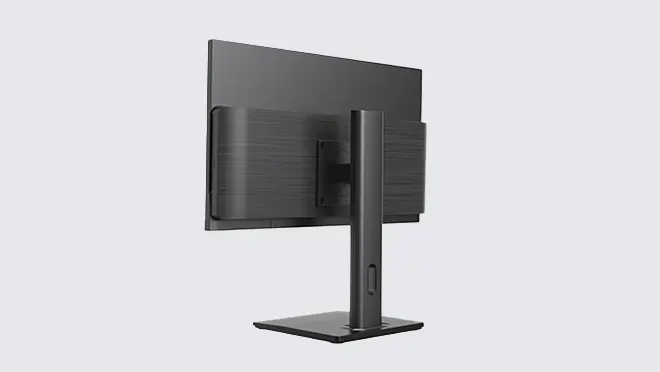

Elegant Brushed Finish AIO PC
The back cover with brushed finish, make the AIl in one PC with high-end and real nice appearance.

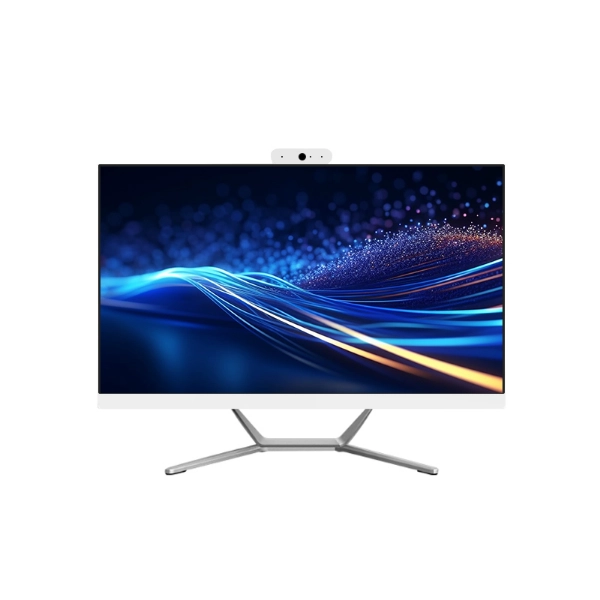

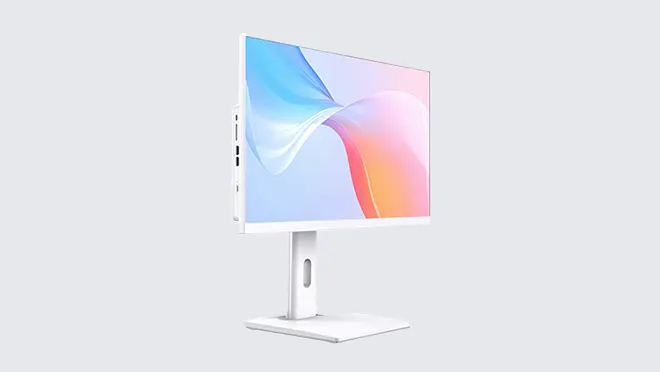

Full HD White AIO Computer
The white color 23.8-inch all in one (AIO) computer with Full HD (1920 x 1080) IPS display, it is ideal for watching movies, editing photos, video conferencing, and enjoying digital content.
High-Speed RAM & Expandable Storage
With fast DDR4 or DDR5 RAM, upgradable M.2 2280 SSD 128GB/256GB/512GB/1TB/2TB.
Comprehensive Connectivity
- Multiple USB ports (Type-A and often a USB-C port)
- HDMI-in port to use the display as a monitor for another device (e.g., laptop, gaming console)
- HDMI-out port for extending to a second monitor *Ethernet port for stable wired internet connection
- Wi-Fi 6 and Bluetooth for wireless connectivity
- 3.5mm audio jack for headphones or external speakers
